Txheej txheem cej luam

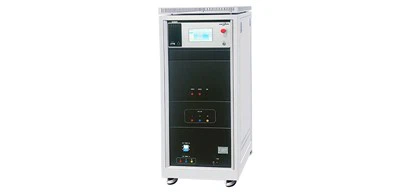

Impulse voltage generator (los yog impulse withstanding voltage tester, los yog impulse test generator, los yog high voltage surge generator) yog tsuas yog siv rau impulse withstand voltage xeem ntawm hluav taws xob thiab hluav taws xob khoom thiab khoom siv. Kev ua tau zoo yog raws li tus qauv IEC60060-1, -2, IEC61010, IEC 61730-2, IEC 60255-5, IEC 60255-27, IEC 60335-1 thiab lwm yam. Cov khoom tuaj yeem tsim cov qib sib txawv (1.2/50μs) impulse. Thiab daim ntawv thov yog dav heev, xws li cov khoom siv hauv tsev, cov khoom siv hluav taws xob tsis tshua muaj hluav taws xob, cov hnub ci vaj huam sib luag, lub zog ntsuas hluav taws xob, cov khoom siv hluav taws xob tsawg thiab lwm yam. Nws yog tsim rau txhua yam ntawm cov khoom siv hluav taws xob thiab hluav taws xob hluav taws xob rwb thaiv tsev kev ua tau zoo.
Nta
● Tus neeg siv tus phooj ywg 7" kov vaj huam sib luag zaub
● Txhawb ntau hom lus& txhawb cov neeg siv
● Ua-nyob rau hauv ib puag ncig kev kuaj tus kheej
● Programmable ua haujlwm
● Suab& tswb muaj nuj nqi, txiav txim siab kuaj tau
● RS232 / USB interface, PC tswj kev ua haujlwm& luam ntawv xeem tsab ntawv ceeb toom
Technical Data
Qauv | HWV 255 | TSI 255L |
Tso zis waveform | 1.2/50μs | |
Output voltage | 0.5 ~ 10kV | 0.5 ~ 12kV (Kev cai siab dua voltage ntawm kev thov) |
Polarity | Positive/negative/alternating | |
Cov zis impedance | 500Ω | 12Ω, 40Ω, 500Ω (yeem) |
Tus naj npawb ntawm impulses | 1 ~ 9999 | |
Lub sijhawm | 3 ~ 9999s | |
Fais fab mov | AC 220V / 230V, 50 / 60Hz | |
Ambient kub | 15 ℃ ~ 35 ℃ | |
