Pulse 2b yog qhov sib npaug ntawm Pulse 2a rau 24V tsheb tshuab (tsheb thauj mus los, tsheb npav, cov khoom siv hnyav), nrog rau cov qib voltage ntau dua.
Pulse 4 simulates qhov hluav taws xob poob ntawm cov khoom siv thaum lub tshuab hluav taws xob pib lub cev muaj zog, tsis suav nrog oob khab - ntsig txog spikes.
Txheej txheem cej luam

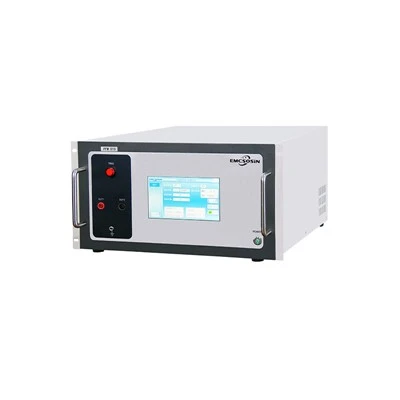

- Transient pulse generator RV P2bP4 yog ib qho kev cuam tshuam simulator siv los simulate ntau lub roj teeb mov waveforms pom zoo los ntawm cov qauv thoob ntiaj teb thiab cov chaw tsim khoom tsheb.
- Pulse 2b simulates transients los ntawm DC motors ua raws li generators tom qab lub ignition yog switched tawm. Pulse 4 simulates mov voltage txo los ntawm energizing lub starter-motor circuits ntawm sab hauv combustion xyaw, tsis suav spikes txuam nrog pib.
Nta
- Kev xeem ua raws li tus qauv ISO 7637-2
- Tus neeg siv tus phooj ywg 7 "xim kov vaj huam sib luag zaub
- Ib qho - qhov tseem ceeb hloov ntawm Suav thiab Askiv, yooj yim rau cov neeg siv sib txawv
- Txhawb kev sib txuas wireless rau cov chaw taws teeb tswj
- Nrog rau ntau yam kev ua haujlwm, xws li kev tswj hwm, kev tiv thaiv, ceeb toom, uas tuaj yeem tiv thaiv kev nyab xeeb ntawm cov neeg siv khoom thiab qhov system
- Ib puag ncig sab hauv nws tus kheej-kev kuaj xyuas, uas tuaj yeem kuaj pom qhov chaw kuaj thiab ceeb toom rau cov neeg siv
- Tus kheej -calibrate muaj nuj nqi los xyuas kom meej cov cuab yeej ua haujlwm zoo
- RS232 / RJ45 interface, PC tswj kev ua haujlwm & luam tawm daim ntawv xeem
Technical data
|
Qauv |
RV P2bP4 |
|
|
Pulse 2b specs |
||
|
Pulse 2 b |
12V system |
24V system |
|
Test voltage UA |
13.5V |
27V |
|
Pulse voltage Peb |
10V |
20V |
|
Impedance Ri |
0Ω~0.05Ω |
|
|
Pulse caij nplooj zeeg T12 |
1ms ± 0.5ms |
|
|
Voltage rau 0-lub sij hawm T6 |
1ms ± 0.5ms |
|
|
Pulse nce lub sij hawm Tr |
1ms ± 0.5ms |
|
|
Pulse duration Td |
0.2~2s |
|
|
Lub sijhawm mem tes |
0.3~9.9s |
|
|
Rated load tam sim no |
20A |
|
|
Tus naj npawb ntawm pulses |
1~9999 |
|
|
Pulse 4 specs |
||
|
Pulse 4 |
12V system |
24V system |
|
Regulated voltage UB |
12V |
24V |
|
1stsag voltage Mus |
-6~-7V |
-12V~-16V |
|
2ndsag voltage Ua |
-2.5V~-6V (|Ua|<=|Us|) |
-5V~-12V (|Ua|<=|Us|) |
|
Impedance Ri |
0~0.02Ω |
|
|
Duration ntawm 1stzog t7 |
10-45 ms |
50 ~ 100ms |
|
Lub sij hawm sawv t8 |
Tsawg dua lossis sib npaug li 50ms |
|
|
Duration ntawm 2ndzog t9 |
0.5~20s |
|
|
1stvoltage sag ntog lub sij hawm t10 |
5ms ib |
10ms ib |
|
Lub sij hawm rov qab mus rau qhov ruaj khov voltage T11 |
5 ~ 100ms |
|
|
Rated load tam sim no |
20A |
|
|
Tus naj npawb ntawm pulses |
1~9999 |
|
|
Fais fab mov |
AC220V ± 10% 50/60Hz |
|
|
Ib puag ncig kub |
15 ° ~ 35 ° C |
|
